Product Technical Parameters
| Definition |
Description |
Definition |
Description |
| CVBS2 |
A V 2 s i g na l in p u t |
R+ |
Red signal |
| GND |
Ground |
GND |
Ground |
| CVBS1 |
AV1 s i g na l in p u t |
G+ |
Green Signal+ |
| GND |
Ground |
GND |
+Ground |
| GND |
- |
B+ |
Blue signal+ |
| VS |
Field sync signal |
GND |
Ground |
| HS |
Line sync signal |
SDA |
I2C Channels |
| GND |
- |
SCL |
I2C Channels |

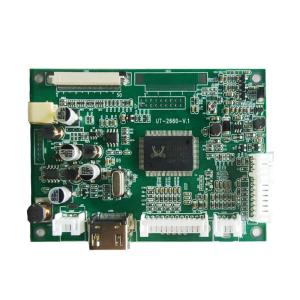

Product description
1.Scope of Application
TTL: The following models fall within the scope of application for TTL - EJ050NA-01G, AT070TN92, AT070TN94, AT080TN64, AT080TN52, EJ080NA-05A, EJ080NA-05B, TM080RDH01, AT090TN12.
LVDS: For LVDS, the applicable models are EJ070NA-01J, N070LGE-L41, HJ070NA-13A, HJ070NA-13B, EJ070NA-01F, ZJ070NA-01P, NJ070NA-23A, P070BAG-CM1, TM070JDHG30. Additionally, it can connect to EJ080NA-04C, HE080IA-01D, HJ080NA-04L, HJ080IA-01F, TM080TDH01, TM080TDHG01 high-definition 50PIN LCD display module driver board inspection.
2.Product Function Description
- Signal Inputs: It offers HDMI, VGA, CVBS, and video signal input options.
- Power Source: The power input is DC +12V.
- OSD Operation: Features multi-function OSD operation.
- Remote Control (Optional): Comes with a remote control function as an optional feature.
- Automatic Shutdown: Automatically shuts down when there is no signal.
3.Signal Input Standard
- HDMI: Follows the general 1.2 version.
- VGA: Supports 800*600 resolution with a refresh rate of 60 to 75.
- CVBS: Has a 1.0Vp-p75Ω specification.
4.Working Environment
- Temperature Range: The working temperature is between -10℃ and +60℃.
- Humidity: The working humidity is 90%RH (with no condensation).
FAQ:
Do you have HDMI Board?
Yes, we have HDMI board, and drive board to support android system.
Do you have Touch screen?
Yes, Capacitive touch screen and Resistive touch screen can be customized
Do you support small batch orders?
Yes, we accept small batch trial orders.
How about your after-sale service?
The warranty period is 12 months, calculated from the delivery date. Any failure due to quality reason, our company will provide free maintenance service or replacement if necessary.
